પ્લેનેટરી ગિયરબોક્સ

Products code PRF 60 PRF 80 PRF 90 PRF 120 PRF 160

ઉત્પાદન વિગતો: Model: PRF120-L2-50 Gear Ratio: 50:1 (2-stage reduction) Flange PCD: 145 mm (input side) Center Hole Diameter: 22 mm Low Backlash: ‰ 10 arcmin High Efficiency: ‰ 94% Rated Torque Capacity: Optimized for heavy-duty applications Noise Level: ‰ 65 dB Mounting Compatibility: 145-22 PCD for standard servo motor interfaces … Key Features: Precision-cut planetary gears for maximum smoothness and reliability High torque density with a compact form factor Designed for use with most major servo motor brands Rigid structure with excellent load capacity Maintenance-free lubrication system

Enhance your automation and motion control systems with the PRF60-L2-15 Planetary Gearbox Reducer, designed for high torque output, compact size, and exceptional positioning accuracy. Perfect for servo motor-driven applications requiring stability, efficiency, and reliability.

Product Specifications: Model: PRF60-L2-30 Gear Ratio: 30:1 (2-stage reduction) Input Flange PCD: 70 mm Pilot Diameter: 14 mm Low Backlash: ‰ 12 arcmin for precise motion control Efficiency: ‰ 94% Noise Level: ‰ 60 dB Input Type: Compatible with a wide range of servo motors Mounting: Standard 70-14 PCD for seamless integration … Key Features: High torque output in a compact form factor Precision-ground planetary gears for long service life Ideal for high-speed and high-load conditions Maintenance-free operation with synthetic grease Lightweight aluminum alloy housing for better heat dissipation Ÿ“ What™s Included: 1 x PRF60-L2-30 Planetary Gearbox Reducer Mounting screws (if applicable) Technical support on request Ÿ” Common Applications: Servo-driven CNC machines Pick-and-place automation Robotics and actuators Printing, labeling, and packaging machinery

Product Specifications: Model: PRF60-L2-70 Gear Ratio: 70:1 (2-Stage) Input Flange PCD: 70 mm Input Shaft PCD: 14 mm Backlash: ‰ 10 arcmin (Low backlash for precision control) Efficiency: ‰ 92% Max Output Torque: High-torque output for demanding loads Mounting Interface: Standard 70-14 PCD compatible with leading servo motor brands … Features & Benefits: Precision-machined planetary gear set Robust steel construction for durability Smooth and quiet operation (< 60 dB) Compact design with high power density Maintenance-free lubrication š™ Applications: Servo Motor Positioning Systems CNC Machines Packaging Equipment Robotics & Automation Systems Printing and Labeling Machines Ÿ“ Package Includes: 1 x PRF60-L2-70 Planetary Gearbox Reducer Standard mounting hardware (if applicable) Digital/manual support available upon request

Product Specifications: Model: PRF60-L2-30 Gear Ratio: 30:1 (2-stage reduction) Input Flange PCD: 70 mm Pilot Diameter: 14 mm Low Backlash: ‰ 12 arcmin for precise motion control Efficiency: ‰ 94% Noise Level: ‰ 60 dB Input Type: Compatible with a wide range of servo motors Mounting: Standard 70-14 PCD for seamless integration … Key Features: High torque output in a compact form factor Precision-ground planetary gears for long service life Ideal for high-speed and high-load conditions Maintenance-free operation with synthetic grease Lightweight aluminum alloy housing for better heat dissipation Ÿ“ What™s Included: 1 x PRF60-L2-30 Planetary Gearbox Reducer Mounting screws (if applicable) Technical support on request Ÿ” Common Applications: Servo-driven CNC machines Pick-and-place automation Robotics and actuators Printing, labeling, and packaging machinery

Product Specifications: Model: PRF80-L2-20 Gear Ratio: 20:1 (Double Stage) Input Flange PCD: 90 mm Motor Shaft Hole: 19 mm (PCD 90-19 compatible) Backlash: ‰ 12 arcmin Efficiency: ‰ 92% Noise Level: < 60 dB Mounting Type: Inline Housing: Precision-machined aluminum alloy … Key Features: High torque output with compact design Precision-ground gears ensure smooth and quiet operation Low backlash for accurate positioning Easy integration with most standard servo motors Maintenance-free design with lifetime lubrication Ÿ“ Package Includes: 1 x PRF80-L2-20 Planetary Gearbox Reducer Mounting bolts (if applicable) Technical support available on request Ÿ› Applications: CNC Machines Robotics & Automation Systems Packaging & Labeling Equipment Conveyor Drives Pick & Place Units

Key Specifications: Model: PRF80-L2-70 Gear Ratio: 70:1 (2-Stage) Input Flange PCD: 90 mm Pilot Diameter: 19 mm Backlash: ‰ 12 arcmin (Low backlash design) Efficiency: ‰ 94% Torque Capacity: High output torque for compact frame size Noise Level: Low noise operation (< 60 dB) Mounting: Standard PCD for quick servo integration … Ideal For: Servo Motor Drive Systems CNC Machines Robotics & Automation Industrial Equipment Packaging & Printing Machinery

Product Specifications: Model: PRF80-L2-100 Gear Ratio: 100:1 (Two-Stage) Input Flange PCD: 90 mm Input Shaft Hole: 19 mm diameter Output Shaft: High-strength alloy steel Backlash: ‰ 12 arcmin Efficiency: ‰ 90% (Two-Stage) Noise Level: < 60 dB Mounting Type: Flange mount with standard PCD … Key Features: High reduction ratio ideal for precision speed control Low backlash for accurate positioning in servo systems Rugged, compact design with high torque output Compatible with most major servo motor brands (Panasonic, Delta, Mitsubishi, etc.) Maintenance-free, lifetime lubricated Ÿ¼ Ideal For: CNC Machines Robotics & Automation Systems Packaging & Printing Equipment Industrial Conveyors Pick & Place Machines

Product Features: Model: PRF90-L1-3 Gear Ratio: 3:1 Input Flange PCD: 90 mm Input Shaft Diameter: 19 mm Backlash: ‰ 8 arcmin “ for accurate, repeatable motion Efficiency: ‰ 95% Noise Level: < 60 dB “ quiet, stable operation Construction: High-strength alloy steel gears with hardened surface treatment Mounting: Standard flange for seamless servo motor integration … Applications: CNC Machines Industrial Automation Servo Motion Systems Robotics Packaging & Printing Machinery

Product Specifications: Model: PRF90-L2-50 Gear Ratio: 50:1 (2-stage planetary reduction) Input Flange PCD: 90 mm Pilot Diameter: 19 mm Backlash: ‰ 12 arcmin (typical for L2 series) Rated Efficiency: ‰ 94% Mounting Interface: Compatible with most 90mm servo motors Input Speed Range: Up to 3000 RPM Output Shaft: Precision machined for consistent torque transfer Ÿš Key Features: High-torque output in a compact design Low-noise, vibration-free operation Precision-ground gear teeth for smooth motion Maintenance-free lubrication (lifetime grease-filled) Rugged build quality with aluminum alloy housing Ÿ› Ideal For: CNC Routers & Milling Machines Delta, Panasonic, Mitsubishi, Siemens Servo Systems Robotic Arms & Actuators Packaging & Printing Machinery Automated Conveyor Drives

Product Specifications: Model: PRF120-L2-20 Gear Ratio: 20:1 (Two-stage reduction) Input Flange PCD: 145 mm Pilot Diameter: 22 mm Output Shaft: Strong and precisely machined for accurate torque delivery Backlash: ‰ 10 arcmin Efficiency: ‰ 94% Noise Level: < 65 dB Mounting Compatibility: Servo motor mount with 145-22 PCD … Key Features: High torque output suitable for demanding loads Dual-stage precision gearing for smooth, stable operation Rugged build quality ensures long-term reliability Low maintenance with sealed design Ideal for medium to heavy-duty servo systems

Specifications: Model: PRF120-L2-70 Gear Ratio: 70:1 (2-stage reduction) Input Flange PCD: 145 mm Shaft Type: High-strength output shaft Low Backlash: ‰ 12 arcmin High Efficiency: ‰ 94% Noise Level: < 65 dB Mounting Standard: 145-22 PCD “ Compatible with various servo motor brands … Key Features: High precision planetary gear system for smooth motion and accuracy Double-stage design for enhanced torque output Compact and rugged aluminum housing Designed to integrate easily with servo motors Ideal for continuous operation under demanding conditions

ઉત્પાદન વિગતો: Model: PRF120-L2-50 Gear Ratio: 50:1 (2-stage reduction) Flange PCD: 145 mm (input side) Center Hole Diameter: 22 mm Low Backlash: ‰ 10 arcmin High Efficiency: ‰ 94% Rated Torque Capacity: Optimized for heavy-duty applications Noise Level: ‰ 65 dB Mounting Compatibility: 145-22 PCD for standard servo motor interfaces … Key Features: Precision-cut planetary gears for maximum smoothness and reliability High torque density with a compact form factor Designed for use with most major servo motor brands Rigid structure with excellent load capacity Maintenance-free lubrication system

Product Specifications: Model: PRF120-L2-35 Gear Ratio: 35:1 (Two-stage reduction) Input Flange PCD: 145 mm Pilot Diameter: 22 mm High Torque Output: Optimized for servo motor performance Backlash: ‰ 10 arcmin Efficiency: ‰ 92% Noise Level: < 65 dB Mounting Interface: Standardized for easy servo motor integration … Key Features: Precision-ground gears for smooth and reliable operation Compact, robust design with aluminum alloy housing High torsional rigidity and shock load resistance Maintenance-free lubrication for long service life Easy installation with standardized mounting dimensions Ÿ› Applications: Servo Motor Drives CNC Routers and Milling Machines Industrial Automation Systems Robotics and Pick-and-Place Systems

Product Specifications: Model: PRF160-L2-20 Gear Ratio: 20:1 (Two-stage) Input Flange PCD: 200 mm Pilot Diameter: 35 mm Mounting Type: Standard flange mounting Backlash: ‰ 12 arcmin (typical) Max Efficiency: ‰ 92% Noise Level: < 65 dB Construction: High-strength alloy steel gears with precision grinding Lubrication: Lifetime lubrication (maintenance-free) … Ideal For: Servo Motor Applications CNC and Milling Machines Robotics & Automated Systems Packaging and Printing Equipment Material Handling Systems

Product Specifications: Model: PRF160-L2-100 Gear Ratio: 100:1 (2-stage) Mounting PCD: 200 mm with 35 mm center hole (200-35 PCD) Type: Right-angle planetary gearbox (L2 “ 2-stage) Backlash: ‰ 12 arcmin (low backlash for accurate control) Efficiency: ‰ 94% Output Shaft: High-strength output shaft for heavy loads Noise Level: < 65 dB Durability: Heat-treated gears for long-lasting performance … Key Features: Designed specifically for servo motor compatibility High torque density in a compact footprint Low backlash for precise positioning and repeatability Easy to mount with 200-35 PCD flange interface Maintenance-free with sealed lubrication system Ÿ“ What™s Included: 1 x PRF160-L2-100 Planetary Gearbox Reducer Mounting hardware (if applicable) Installation and operation guide (available on request) Ÿ¼ Application Areas: Industrial automation CNC machining centers Robotic arms and gantry systems Printing and packaging machinery Servo motor drive systems

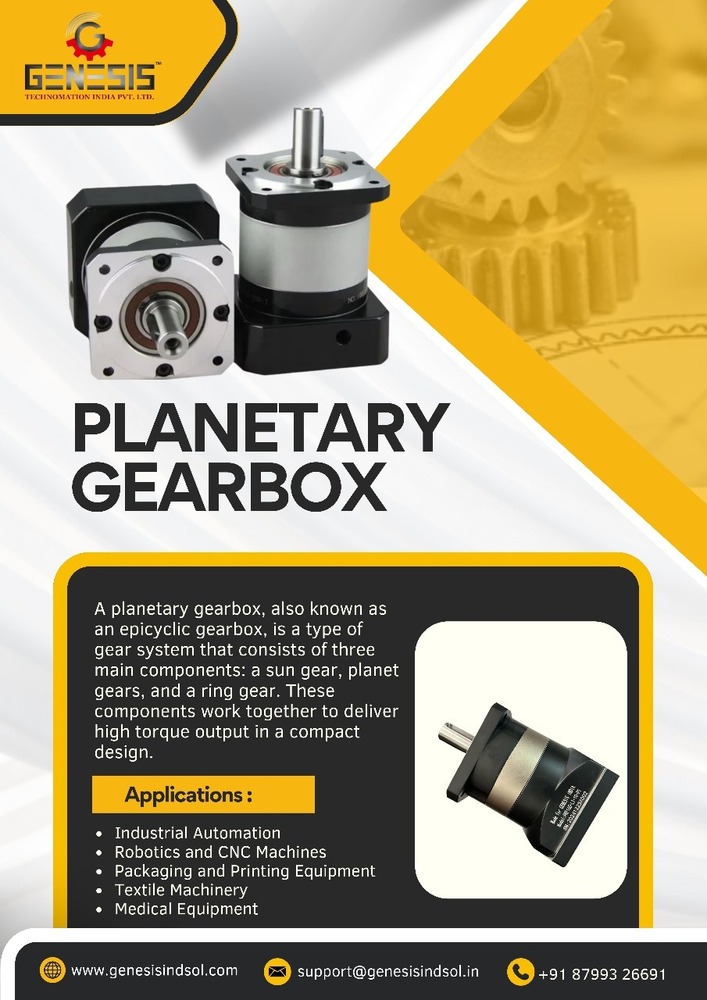

Product Features: Model: PRF90-L2-25 Gear Ratio: 25:1 (2-stage) Motor Mounting Interface: NEMA34 compatible High Torque Output: Designed to support demanding industrial loads Backlash: ‰ 12 arcmin (typical for L2 series) Efficiency: ‰ 94% Quiet Operation: Low noise level < 60 dB Compact & Durable: Hardened gear construction ensures long service life … Applications: CNC Machines Robotics Automation Systems Packaging Equipment Conveyor Drives Precision Motion Systems

Products code PRF 60 PRF 80 PRF 90 PRF 120 PRF 160
