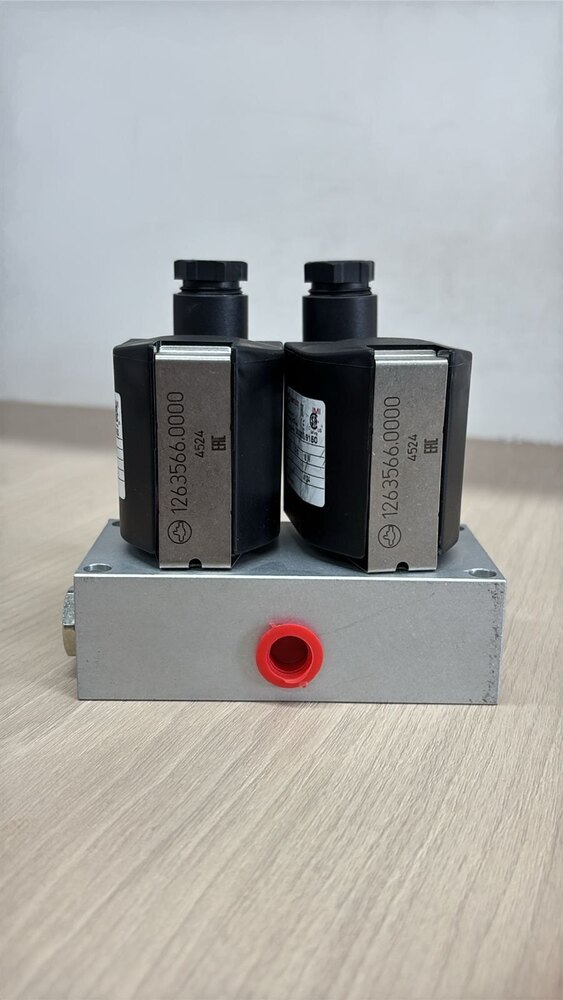

Manifold Soneloid SMC &CNC Laser Gas

15200 INR/Piece

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Manifold Soneloid SMC &CNC Laser Gas Price And Quantity

Price 15200 INR/Piece
Minimum Order Quantity 1 Piece

Product Description

Here is a general specification overview for SMC & CNC Laser Gas Manifold Systems, used in laser cutting or welding operations. These systems are critical for delivering assist gases like oxygen, nitrogen, or CO to laser cutting machines in a safe and controlled manner.

ðŸ” SMC & CNC Laser Gas Manifold System Specification

… 1. General Description

Laser gas manifold systems are designed to deliver high-purity assist gases (typically O, N, or CO) to CNC laser machines. The manifold system controls pressure, flow rate, and gas switching while ensuring safety and minimizing contamination.

… 2. Key Components

Component	Description
Inlet Connections	Compatible with high-pressure gas cylinders (typically 200-300 bar)
Pressure Regulators	Dual-stage or single-stage, depending on application; maintains consistent outlet pressure
Gas Filters	Removes particulates and ensures gas purity
Solenoid Valves	For remote or automatic gas switching
Pressure Gauges	Inlet and outlet pressure indication (usually analog or digital)
Outlet Connections	Configurable to suit CNC machine input (e.g., ¼", ", or custom fittings)
Safety Relief Valve	Prevents overpressure scenarios
Piping Material	Stainless steel (SS316/SS304) or brass (nickel-plated) depending on gas type and purity requirement
Mounting Options	Wall-mount or rack-mount options available
Purge Valves	For inert gas purging to prevent contamination

… 3. Gas Compatibility

Oxygen (O): Medical- or industrial-grade; use O2-compatible components (no lubricants that can combust)
Nitrogen (N): Inert; used for high-speed cutting, especially for stainless steel
Carbon Dioxide (CO): For specific laser applications; piping must be CO-compatible

… 4. Operating Parameters

Parameter	Value
Inlet Pressure	150 “ 300 bar (max 350 bar for some designs)
Outlet Pressure	0.5 “ 30 bar adjustable (depending on regulator design)
Flow Rate	Up to 100 Nm³/hr (varies by configuration)
Temperature Range	-20C to +60C typical
Leak Rate	‰ 1x10» mbar l/s (He leak test standard)

… 5. Control Options

Manual Operation: Via hand-operated valves and regulators
Pneumatic/Electronic: Via PLC or CNC signal integration
Automatic Changeover: For uninterrupted gas supply during cylinder replacement

… 6. Standards & Certifications

ISO 14175, ISO 10297, ISO 7291
CE Certified
PED Compliant (Pressure Equipment Directive)
Optional: UL, ATEX compliance for specific zones

… 7. Optional Features

Flow meters (rotameter or digital)
Alarm indicators for low gas pressure
Gas panel enclosures
Heater or insulation jackets (for CO use)
Remote monitoring and diagnostics

… 8. Application in CNC Laser Cutting

CNC Fiber or CO Laser Cutters
Sheet metal cutting with precision gas control
High-speed, high-pressure gas delivery systems for narrow kerf widths and clean edges
