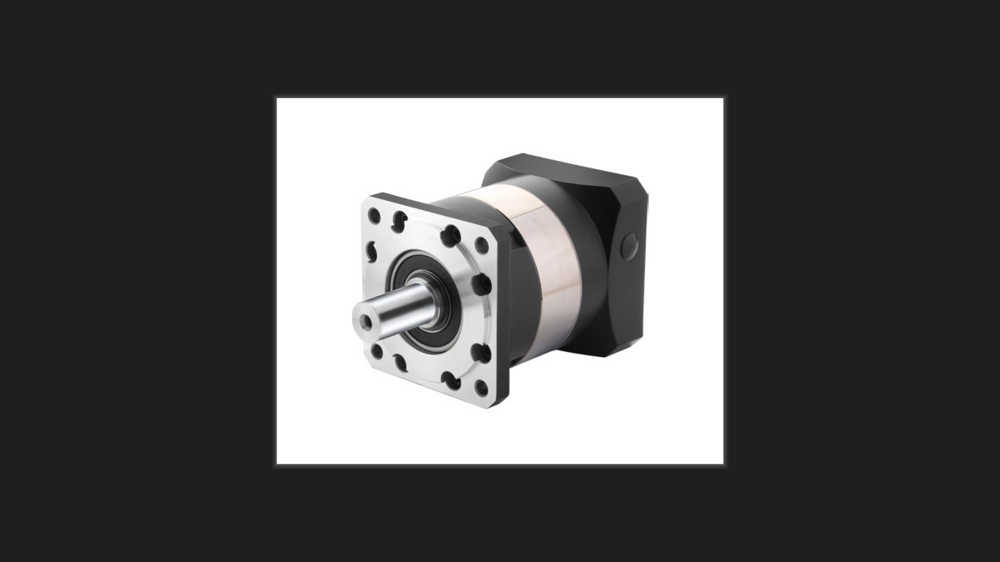

Planetary Gearbox Reducer For Servo Motor PRF60-L2-30 (70-14 PCD)

Price 8300 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Planetary Gearbox Reducer For Servo Motor PRF60-L2-30 (70-14 PCD) Specification

Gear Type
Planetary Reducer

Material
Alloy Steel

Processing Type
Precision Machining

Gear Tooth Profile
Spur

Gearing Arrangement
Planetary

Direction
Bidirectional

Output Torque
40 Nm

Rated Power
400 W

Input Speed
4000 rpm

Output Speed
133 rpm

Voltage
DC 24V

Efficiency
>95%

About Planetary Gearbox Reducer For Servo Motor PRF60-L2-30 (70-14 PCD)

Boost your servo motors performance with the PRF60-L2-30 Planetary Gearbox Reducer, designed for compact applications requiring high torque, low backlash, and reliable speed reduction. Perfect for automation, robotics, CNC, and motion control systems.

Precision Engineering for Demanding Applications

Built with superior alloy steel and precision machining, the PRF60-L2-30 planetary gearbox ensures exceptional accuracy and durability. Its spur gear tooth profile and planetary gearing arrangement deliver reliable operation, making it suitable for advanced automation, robotics, and CNC machinery that demand tight control and smooth power transmission.

High Performance and Extended Service

Experience consistent performance with a high reduction ratio of 30:1, a robust output torque of 40 Nm, and outstanding efficiency above 95%. The synthetic grease lubrication and high-grade sealing provide trouble-free operation in ambient temperatures from -10C to +50C, ensuring the gearbox endures over 20,000 hours of service.

FAQs of Planetary Gearbox Reducer For Servo Motor PRF60-L2-30 (70-14 PCD):

Q: How is the PRF60-L2-30 planetary gearbox reducer installed?

A: The PRF60-L2-30 is designed for flange-mounted installation, making it straightforward to mount onto compatible servo motors with a 70 mm pitch circle diameter. Secure it using evenly tightened bolts on the flange for stable operation.

Q: What are the key benefits of using this gearbox with servo motors?

A: Using the PRF60-L2-30 with servo motors results in high torque output (40 Nm), minimal backlash, and superior efficiency (over 95%). These benefits translate into precise positional control, reduced mechanical wear, and improved energy usage in automated systems.

Q: When should synthetic grease lubrication be checked or replaced?

A: Though the gearbox is pre-lubricated for long-term reliability, its advisable to check lubrication at regular maintenance intervals, especially after prolonged or intensive use, to maintain optimal performance and service life.

Q: Where can this planetary gearbox be used?

A: The gearbox is suitable for applications requiring precision and durability, such as industrial automation, robotics, CNC machinery, and equipment that utilizes servo motorsparticularly within environments adhering to the -10C to +50C temperature and IP54 protection guidelines.

Q: What is the process for ensuring correct alignment during installation?

A: During installation, align the output shaft and flange precisely with the mating servo motor components. Carefully adjust to prevent misalignment, then fasten all mounting bolts securely to maintain optimal performance and reduce wear.

Q: How does the IP54 protection grade benefit the gearbox?

A: The IP54 rating safeguards the gearbox against limited dust ingress and water splashes, protecting internal components and enhancing operational reliability in typical industrial environments.
