Stepper Motor Right Angle Gearbox

Stepper Motor Right Angle Gearbox About

A Stepper Motor Right Angle Gearbox is a gearbox that mounts to a stepper motor and changes the output shaft direction by 90, while also providing speed reduction and higher torque.

• 90 output shaft (right-angle design)
• Higher output torque
• Reduced output speed
• Compact installation where space is limited
• Better positioning accuracy (depending on gearbox type)
• Motor sizes: NEMA 17, NEMA 23, NEMA 24, NEMA 34, NEMA 42
• Gear ratios: 3:1, 5:1, 10:1, 20:1, 30:1, 50:1, 100:1
• Output torque: 5 Nm to over 200 Nm (depending on model)
• Backlash:
  • Precision planetary: 10 arc-min
  • Standard planetary: 1020 arc-min
  • Worm gearbox: Higher backlash
Applications
• Pick-and-place machines
• Conveyor systems
• Packaging machines
• CNC routers
• Rotary indexing tables
• Printing machines
• Food processing equipment

Optimal Performance for Precision Applications

Engineered for accurate motion control, this right angle gearbox ensures precise positioning and smooth operation with minimal backlash. Its high torque output delivers powerful and stable performance, making it ideal for environments where accuracy and consistency are essential, such as CNC machinery and industrial robotics.


Durable, Space-Saving Design

Constructed from high-grade metal alloy and finished with precision machining, the gearbox offers exceptional durability and a long service life. Its compact, right-angle shape enables easy integration into equipment with space constraints without sacrificing strength or reliability.


Seamless Integration and Versatility

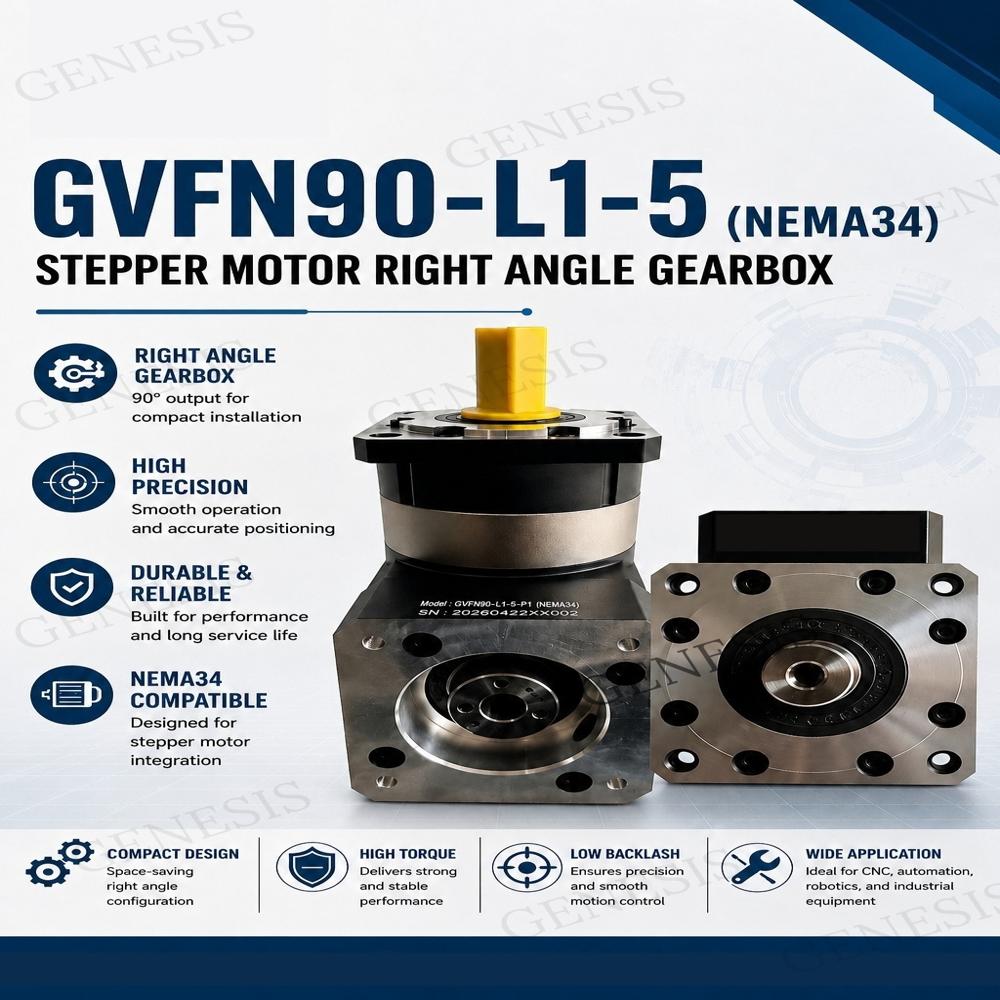

Compatible with NEMA34 standard stepper motors, the GVFN90-L1-5-P1 simplifies setup and reduces installation time. The face-mounting pattern allows secure and stable attachment, while the right-angle output shaft is perfect for applications requiring directional changes or limited mounting space.
