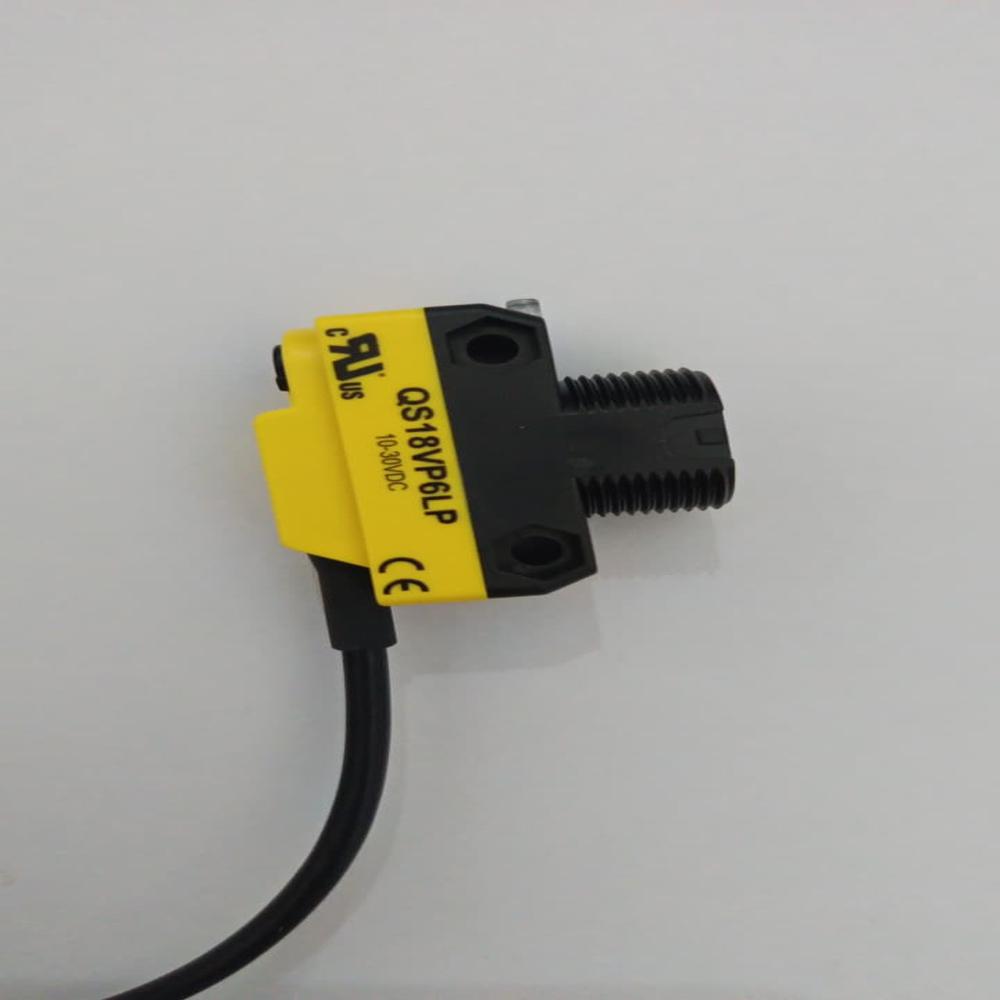

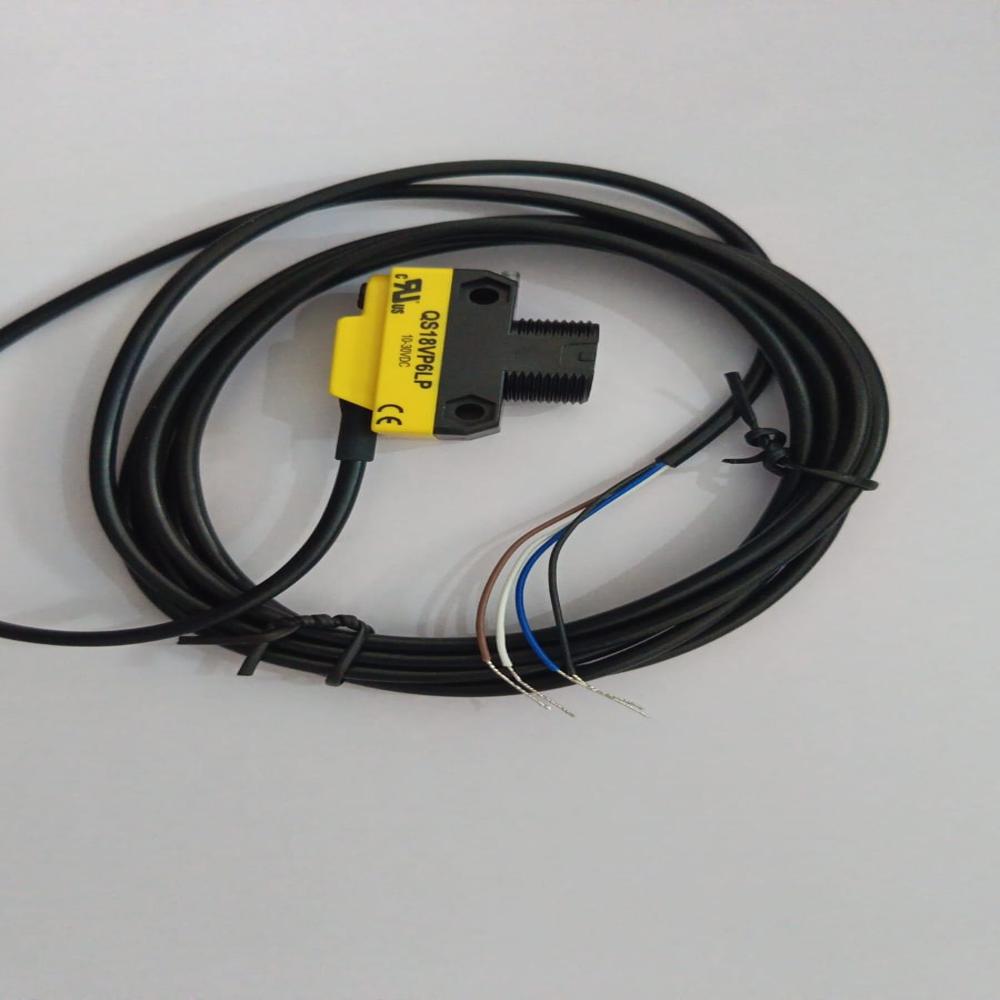

Banner Photoelectric Sensor Qs18vp6lp

Name: Banner Photoelectric Sensor Qs18vp6lp
Brand: GENESIS TECHNOMATION INDIA PRIVATE LIMITED
Price: 1880.0 INR
Availability: InStock

Price 1880.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Banner Photoelectric Sensor Qs18vp6lp Specification

Output
PNP, NO/NC

Theory
Retroreflective (Polarized)

Type
Photoelectric Sensor

Operating Voltage
10-30 VDC

Sensing Type
Polarized Retroreflective

Sensing Range
50-3500 mm

Light Source
630 nm Polarized Red LED

Indicator
LEDs

Connection
2 m Cable

Adjustment
Potentiometer

Input Output
Discrete

Power
DC

Banner Photoelectric Sensor Qs18vp6lp Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About Banner Photoelectric Sensor Qs18vp6lp

Reliable Object Detection for Your Conveyor Lines! Upgrade your automation setup with the Banner Engineering QS18VP6LP Polarized Retroreflective Photoelectric Sensorengineered for precision bottle and product detection on filling machine conveyors.
Key Specifications:Model: QS18VP6LP
Sensing Range: 503500 mm
Supply Voltage: 1030 VDC
Output Type: PNP (NO/NC)
Light Source: 630 nm Polarized Red LED
Adjustment: Potentiometer
Connection: 2-meter Cable
How It Works:The sensor continuously casts a polarized red beam toward a reflector linked to your PLC input. When a product or bottle passes through, the beam is interrupted, triggering an instant signal to the PLC for accurate counting, positioning, and transfer.

Versatile Sensing Range

The QS18VP6LP offers a sensing range from 50 to 3500 mm, making it ideal for a wide variety of applications, from small parts detection to long-range object sensing. Its precise polarized retroreflective technology enhances reliability, especially on reflective or shiny surfaces.

Simple Installation and Adjustment

Featuring a 2 m cable for flexible placements and an easy-to-use potentiometer for sensitivity adjustments, this sensor is engineered for user-friendly installation. Its LED status indicators provide clear feedback, streamlining the setup and maintenance process.

FAQ's of Banner Photoelectric Sensor Qs18vp6lp:

Q: How does the Banner QS18VP6LP Photoelectric Sensor detect objects?

A: The sensor uses polarized retroreflective technology combined with a 630 nm polarized red LED light source. It detects objects by monitoring light disruption between itself and a matched reflector, effectively minimizing false detections from shiny surfaces.

Q: What types of outputs does the sensor provide and how can they be configured?

A: This sensor features a PNP output with selectable Normally Open (NO) or Normally Closed (NC) logic, allowing integration into various control systems based on specific application requirements.

Q: When should I use a polarized retroreflective photoelectric sensor like the QS18VP6LP?

A: This sensor is especially beneficial in applications where you need to detect objects in front of reflective backgrounds or where shiny surfaces may be present. Its polarization helps filter unwanted reflections, ensuring reliable operation.

Q: Where is the potentiometer used in the QS18VP6LP photoelectric sensor?

A: The potentiometer, located on the sensor housing, allows users to fine-tune the sensing distance and sensitivity for optimal performance in different application environments.

Q: What is the process for connecting and powering this sensor?

A: The QS18VP6LP comes with a 2-meter cable for straightforward wiring. It operates on 10-30 VDC and provides discrete input/output signals, making it easy to connect to standard industrial circuits.

Q: What benefits do the built-in LED indicators provide?

A: The built-in LEDs help users easily monitor sensor status, alignment, and detection conditions in real time, simplifying setup, troubleshooting, and maintenance.
