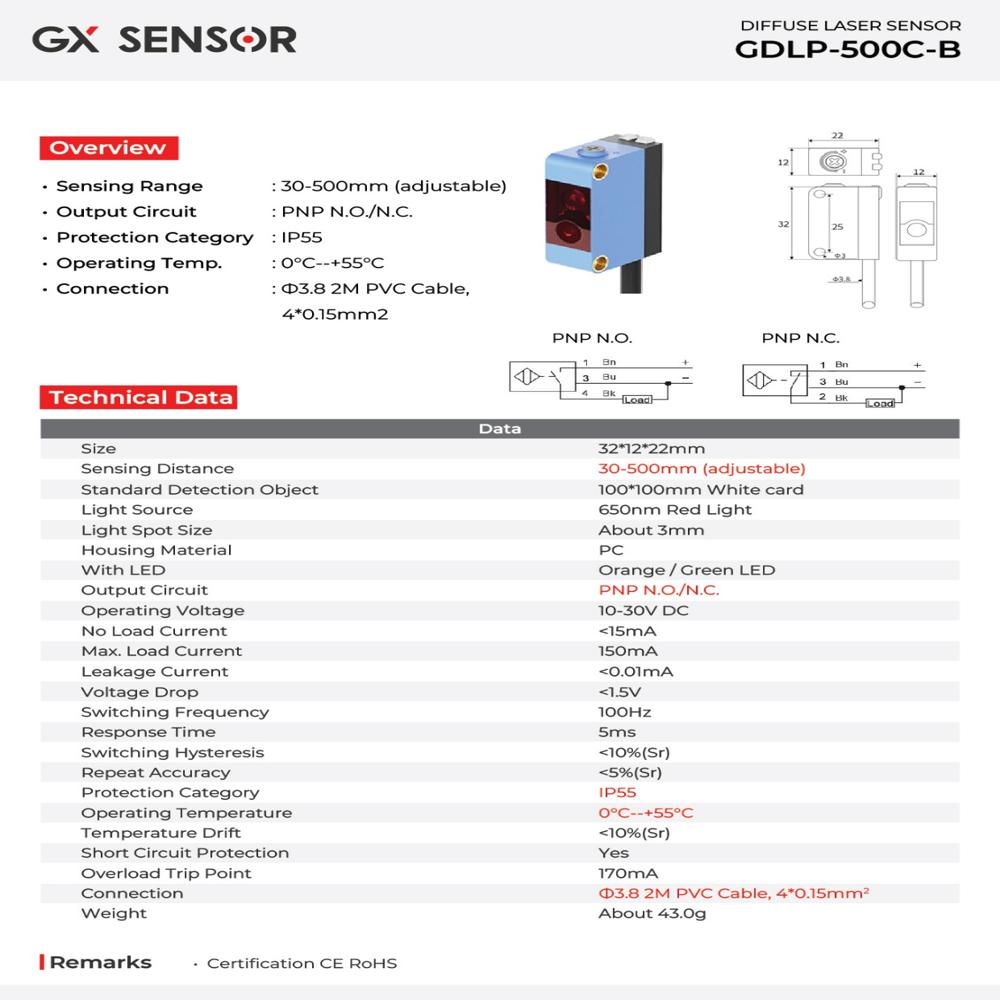

Laser led diffuse type GX Photo electrical sensor

Name: Laser led diffuse type GX Photo electrical sensor
Brand: GENESIS TECHNOMATION INDIA PRIVATE LIMITED
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Laser led diffuse type GX Photo electrical sensor Specification

Resistance
Load resistance less than 100mA

Output
NPN (NO+NC), or PNP (Depending on model)

Theory
Other

Type
Laser LED diffuse type photoelectric sensor

Accuracy
High accuracy, typically within 1% F.S.

Operating Voltage
12V to 24V DC 10%

Output Voltage
30V DC max (open collector output)

Compensated Temperature
-10C to +55C

Storage Temperature
-25C to +70C

Operating Temperature
-10C to +55C

Sensing Distance
100mm to 500mm (depending on model)

Light Source
Red laser diode, Class 1

Degree of Protection
IP66

Indicator
Operation indicator (Red LED), Stability indicator (Green LED)

Case Material
ABS plastic

Connection Method
Pre-wired, 2m cable

Mounting Method
Bracket mounting or direct mounting

Weight
Approx. 100g

Response Time
1ms

Protection Circuit
Reverse polarity and output short-circuit protection

Laser led diffuse type GX Photo electrical sensor Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About Laser led diffuse type GX Photo electrical sensor

A Laser LED Diffuse Type GX Photoelectric Sensor is a non-contact optical sensor used to detect the presence of objects by using a laser or LED light beam. It belongs to the GX series of photoelectric sensors and is commonly used in industrial automation and object detection systems.

In a diffuse type sensor, the transmitter and receiver are built into the same housing. The sensor emits a laser or LED light beam toward the target object. When an object enters the sensing area, the light is reflected back from the objects surface to the receiver inside the sensor. The sensor detects this reflected light and generates an electrical output signal, indicating that the object is present.

Laser LED diffuse sensors are known for their high accuracy, fast response time, and ability to detect small or distant objects. They are widely used in applications where precise detection and compact sensor size are required.

Key Features

Non-contact object detection
Laser or LED light source for precise sensing
Diffuse reflection detection method
Fast response time
Compact GX series design
Indicator LED for sensor status

ypical Specifications

Light source: Laser or LED
Detection method: Diffuse reflection
Sensing distance: Up to several hundred millimeters (depends on model)
Power supply: 12 24 V DC
Output type: NPN or PNP transistor output
Protection rating: IP65 / IP67

Applications

Object detection on conveyor belts
Packaging and sorting machines
Small object detection in automation
Robotics and material handling systems
Production line inspection

Superior Detection Accuracy

Benefit from highly accurate object sensing, with precision typically within 1% F.S. The diffuse reflective sensing theory enables reliable detection, even with varying target surfaces, making it ideal for complex industrial automation requirements.

Durable and Secure Construction

Encased in ABS plastic and rated IP66, the GX Photoelectric Sensor withstands harsh environments, providing long-term operational integrity. Built-in protection circuits guard against wiring errors and output short circuits, contributing to enhanced safety and longevity.

Flexible Integration and Operation

Offering both NPN (NO+NC) and PNP output options (model dependent) plus simple installation via bracket or direct mounting, this sensor seamlessly integrates into new and existing setups. The clear operation and stability indicators simplify troubleshooting and status monitoring.

FAQ's of Laser led diffuse type GX Photo electrical sensor:

Q: How is the GX Photoelectric Sensor installed?

A: You can mount the Laser LED Diffuse Type GX Photoelectric Sensor either using a provided bracket or directly onto mounting surfaces. The pre-wired 2-meter cable allows flexible connection to control systems.

Q: What environments are suitable for this sensor's operation?

A: The sensor is designed for industrial environments, with an IP66 rating ensuring protection against dust and water jets. It is suitable for use in temperatures ranging from -10C to +55C during operation.

Q: When should I select NPN or PNP output models?

A: Choose between NPN (NO+NC) or PNP output based on your control system's requirements. NPN is commonly used with sinking inputs, while PNP is used with sourcing inputs. Confirm compatibility with your equipment before selection.

Q: Where can the sensor be used effectively?

A: The sensor is widely suitable for manufacturing lines, automated sorting, packaging, and quality control processes, especially in industries requiring reliable, high-precision object detection.

Q: What is the process for wiring and powering the sensor?

A: Connect the sensor using the attached 2-meter pre-wired cable to a 12V to 24V DC power supply, ensuring load resistance remains below 100mA. The sensor features internal protection against accidental reverse polarity and output short circuits.

Q: How does the laser diffuse sensing technology work?

A: This sensor uses a red laser diode to emit a beam, which reflects off detected objects. The diffuse reflection is received by the sensor, enabling object detection with high accuracy, regardless of surface color or texture.

Q: What benefits do the operation and stability indicators provide?

A: The red LED operation indicator confirms active detection, while the green LED stability indicator shows optimal working conditions, aiding quick troubleshooting and operational confidence for users.
