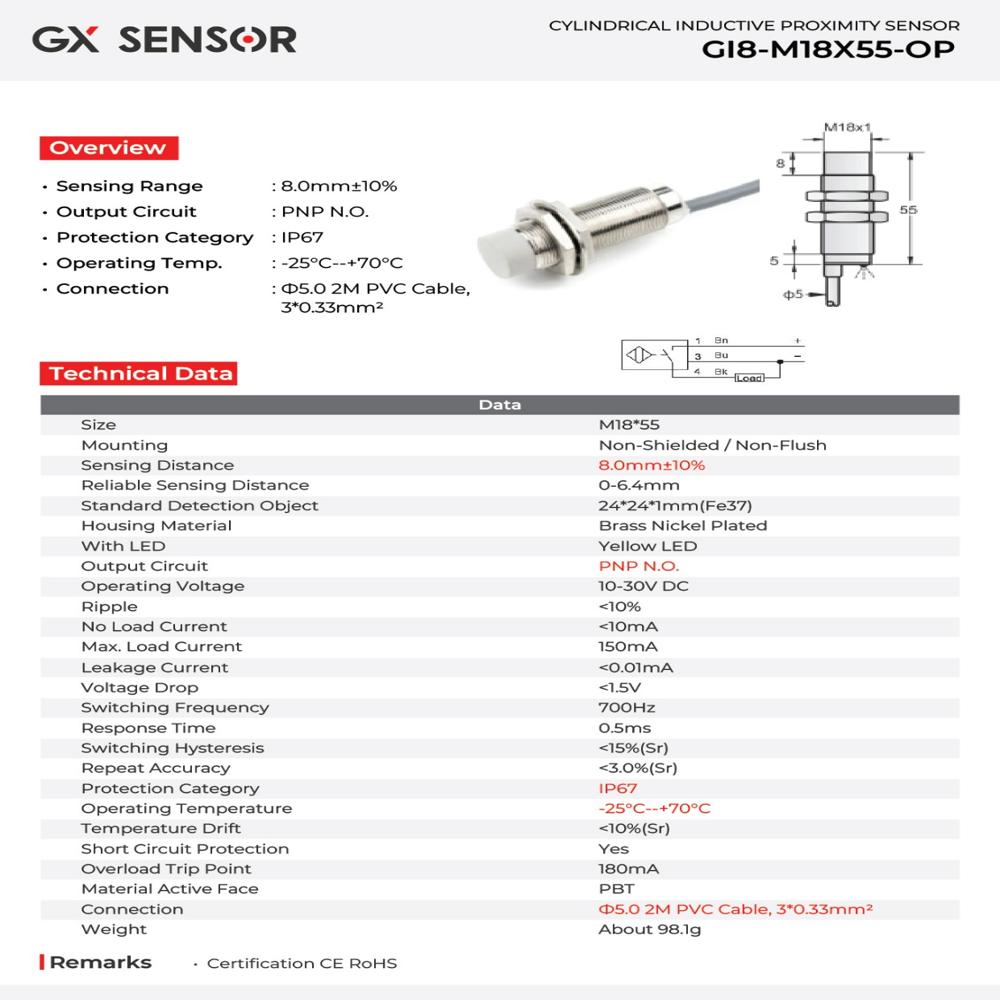

M18 GX Inductive Proximity sensor

Name: M18 GX Inductive Proximity sensor
Brand: GENESIS TECHNOMATION INDIA PRIVATE LIMITED
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

M18 GX Inductive Proximity sensor Specification

Resistance
200m

Output
PNP Normally Open (NO)

Theory
Other

Type
Inductive Proximity Sensor

Accuracy
1% of sensing distance

Operating Voltage
10-30V DC

Output Voltage
DC 10-30V

Compensated Temperature
0C to +60C

Storage Temperature
-40C to +85C

Operating Temperature
-25C to +70C

Response Time
<2ms

Protection Degree
IP67

Mounting Type
Flush Mount

Shielding
Shielded

Dielectric Strength
1,000V AC/1 min

Hysteresis
<10% of sensing distance

Dimensions
M18 x 60 mm

Sensing Distance
8mm

Weight
Approx. 90g

Load Current
max. 200mA

Switching Frequency
500Hz

Indicator
LED output indication

Enclosure Material
Nickel plated brass

M18 GX Inductive Proximity sensor Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About M18 GX Inductive Proximity sensor

GQ5-18-OP

GQ5-18-CP

GQ5-17-ON

GQ5-17-CN

GFI2-M8X70-OP-M12

GFI4-M12X35-ON

GFI4-M12X35-OP

GFI4-M12X45-ON

GFI4-M12X45-CN

GFI4-M12X45-OP

GFI4-M12X45-CP

GFI2-M8X60-OP-M8

GFI4-M12X50-OP-M12

GIF5-M18X55-ON

GFI5-M18X55-CN

GFI5-M18X55-OP

GFI5-M18X55-CP

GFI8-M18X55-ON

GFI8-M18X55-CN

GFI8-M18X55-OP

GFI8-M18X55-CP

GI8-M18X55-ON

GI8-M18X55-CN

GI8-M18X55-OP

GI8-M18X55-CP

M18 GX Inductive Proximity Sensor is a non-contact sensor used to detect metal objects in industrial automation systems. The term M18 refers to the 18 mm diameter threaded cylindrical body of the sensor, which allows easy mounting in machines and equipment.

This sensor operates based on the principle of electromagnetic induction. Inside the sensor, an oscillator generates an electromagnetic field at the sensing face. When a metal object approaches the sensing area, it disturbs this electromagnetic field and reduces the oscillation amplitude. The sensor detects this change and switches the output signal (ON or OFF) to indicate the presence of the metal object.

GX series inductive proximity sensors are known for their high reliability, compact design, and resistance to harsh industrial conditions such as dust, oil, moisture, and vibration.

Key Features

Non-contact detection of metal objects
M18 threaded cylindrical housing for easy installation
High durability for industrial environments
Fast switching response
LED indicator for operation status
Protection against dust and water

Typical Specifications

Sensor size: M18 (18 mm diameter)
Sensing distance: 5 8 mm (depending on model)
Power supply: 10 30 V DC
Output type: NPN or PNP
Protection rating: IP67
Response time: Fast switching

Applications

Metal detection in conveyor systems
Position detection in machines
Automation and robotics
Packaging and assembly lines
Limit and safety detection

Reliable Object Detection in Tough Environments

Engineered for durability, the M18 GX Inductive Proximity Sensor features a nickel-plated brass housing and IP67 protection degree, ensuring performance in dusty or moist conditions. Enjoy consistent detection thanks to its 1% sensing accuracy and shielded design that minimizes interference. An LED indicator provides immediate feedback, making maintenance and operation simpler.

Versatile and High-Speed Sensing Adaptability

With a fast response time of less than 2ms and a high switching frequency of 500Hz, this sensor excels in rapid detection tasks. Its 8mm sensing range and flush mounting capability make it suitable for compact or crowded installations. Compatible with both cabled and connector connections, it adapts efficiently to your setup requirements.

FAQ's of M18 GX Inductive Proximity sensor:

Q: How do I install the M18 GX Inductive Proximity Sensor for optimal performance?

A: To achieve optimal performance, mount the sensor flush against a non-metallic or compatible surface using its M18 x 60 mm body. Ensure that the sensing face is aligned directly with the target object and within the 8mm sensing distance. Proper wiring to a 10-30V DC power supply and adequate shielding from strong magnetic fields are also recommended.

Q: What type of objects can the M18 GX Inductive Proximity Sensor detect?

A: The sensor operates on the inductive principle, meaning it effectively detects metallic objects within its 8mm range. It is particularly suited for detecting steel, iron, and similar conductive materials, making it ideal for use in manufacturing, automation, and machinery monitoring applications.

Q: When is the output LED on the sensor activated, and what does it indicate?

A: The LED output indicator on the sensor lights up when a metallic target is detected within the sensing range. This immediate visual feedback confirms successful detection and proper sensor functioning during operation or setup.

Q: Where can the M18 GX Proximity Sensor be used considering its protection and temperature range?

A: With an IP67 rating and an operating temperature range from -25C to +70C, the sensor is suitable for both indoor and outdoor environments-such as factories, assembly plants, and packaging lines-where exposure to water, dust, or fluctuating temperatures is common.

Q: What is the process for wiring this inductive proximity sensor into my automation system?

A: The sensor features a 3-wire PNP Normally Open output, compatible with most standard DC automation systems. Connect the brown wire to the positive supply (10-30V DC), blue to ground, and black to the signal input of your control device. Secure connections either by direct cable or via the compatible connector.

Q: How does using the M18 GX sensor benefit my automation processes?

A: This sensor offers precise, fast detection with a minimal hysteresis (<10% of the sensing distance), enhancing automation accuracy and reducing errors. Its robust construction ensures long-term reliability, even in challenging environments, ultimately improving productivity and minimizing downtime.
