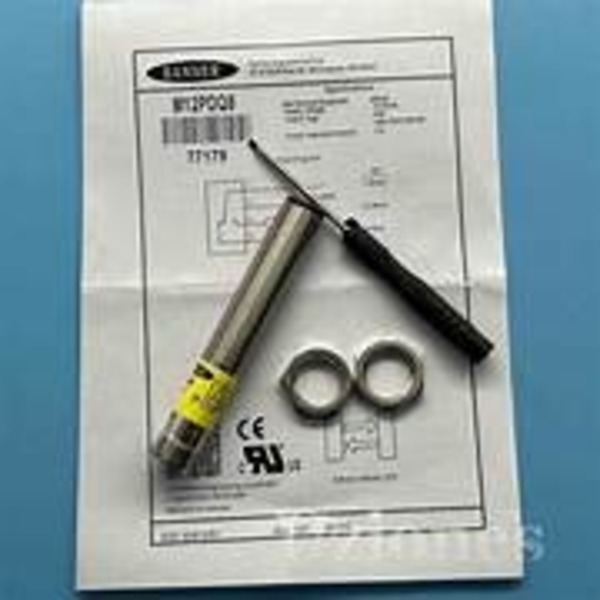

M12PDQ8 Cylindrical BGS SENSOR

Name: M12PDQ8 Cylindrical BGS SENSOR
Brand: GENESIS TECHNOMATION INDIA PRIVATE LIMITED
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

M12PDQ8 Cylindrical BGS SENSOR Specification

Resistance
IP67

Material
ABS

Usage
Industrial

Product Type
M12PDQ8 Cylindrical BGS SENSOR

Color
Silver

Output
NPN/PNP, NO+NC

Theory
Other

Type
Photo Electric

Accuracy
High precision switching

Operating Voltage
10-30V DC

Output Voltage
max. 30V DC

Compensated Temperature
-10°C to +50°C

Storage Temperature
-40°C to +70°C

Operating Temperature
-25°C to +55°C

Dimensions
M12 x 60mm

Response Time
Less than 1ms

Connection
3-wire, M12 connector

Sensing Distance
10-80mm (Adjustable)

Protection Degree
IP67

Output Current
Max. 100mA

Light Source
Red LED

Supply Current
<20mA

Enclosure Type
Cylindrical

About M12PDQ8 Cylindrical BGS SENSOR

This sensor is suitable for applications requiring reliable object detection within a 400 mm range, such as in packaging, material handling, or assembly lines. Its robust design and high ingress protection ratings make it ideal for use in harsh industrial environments.

Flexible Sensing for Industrial Applications

Engineered for versatility, the M12PDQ8 sensor offers an adjustable sensing range from 10mm to 80mm, making it suitable for varied automation and detection tasks. Its high precision ensures consistent switching, ideal for complex industrial setups requiring reliable object detection and process control.

Reliable Operation in Harsh Environments

With an IP67 protection rating, the sensor withstands dust, moisture, and challenging temperature conditions. The ABS enclosure and M12 connector further enhance durability and ease of installation, supporting reliable operation across manufacturing, packaging, and assembly lines.

FAQ's of M12PDQ8 Cylindrical BGS SENSOR:

Q: How do I adjust the sensing distance on the M12PDQ8 Cylindrical BGS Sensor?

A: The sensing distance of the M12PDQ8 sensor can be adjusted within a range of 10mm to 80mm using the built-in configuration mechanism, typically a dial or potentiometer. This allows you to fine-tune detection according to your application requirements.

Q: What benefits does the IP67 protection rating offer for industrial environments?

A: The IP67 protection ensures the sensor is fully resistant to dust and water immersion up to 1 meter, making it highly suitable for challenging industrial settings such as manufacturing plants, warehouses, or outdoor installations.

Q: When should I use the NO+NC output feature of the sensor?

A: The NO+NC (Normally Open + Normally Closed) output configuration allows for flexible integration into control circuits, making the sensor adaptable for both fail-safe and standard switching operations depending on your system's needs.

Q: Where can I install the M12PDQ8 sensor within my facility?

A: Due to its compact M12 x 60mm cylindrical design and robust enclosure, the sensor can be installed in tight spaces, on conveyor systems, automated production lines, or anywhere precise object detection is required.

Q: What process does the sensor use for detection, and how does its red LED light source contribute?

A: The M12PDQ8 utilizes background suppression technology with a red LED light source to achieve high-precision switching, ensuring reliable detection even when differentiating objects from backgrounds in complex environments.

Q: How does the 3-wire M12 connection simplify installation and usage?

A: The 3-wire M12 connector standardizes wiring for power and output, making installation straightforward and reducing setup time while ensuring secure connections for industrial automation applications.
