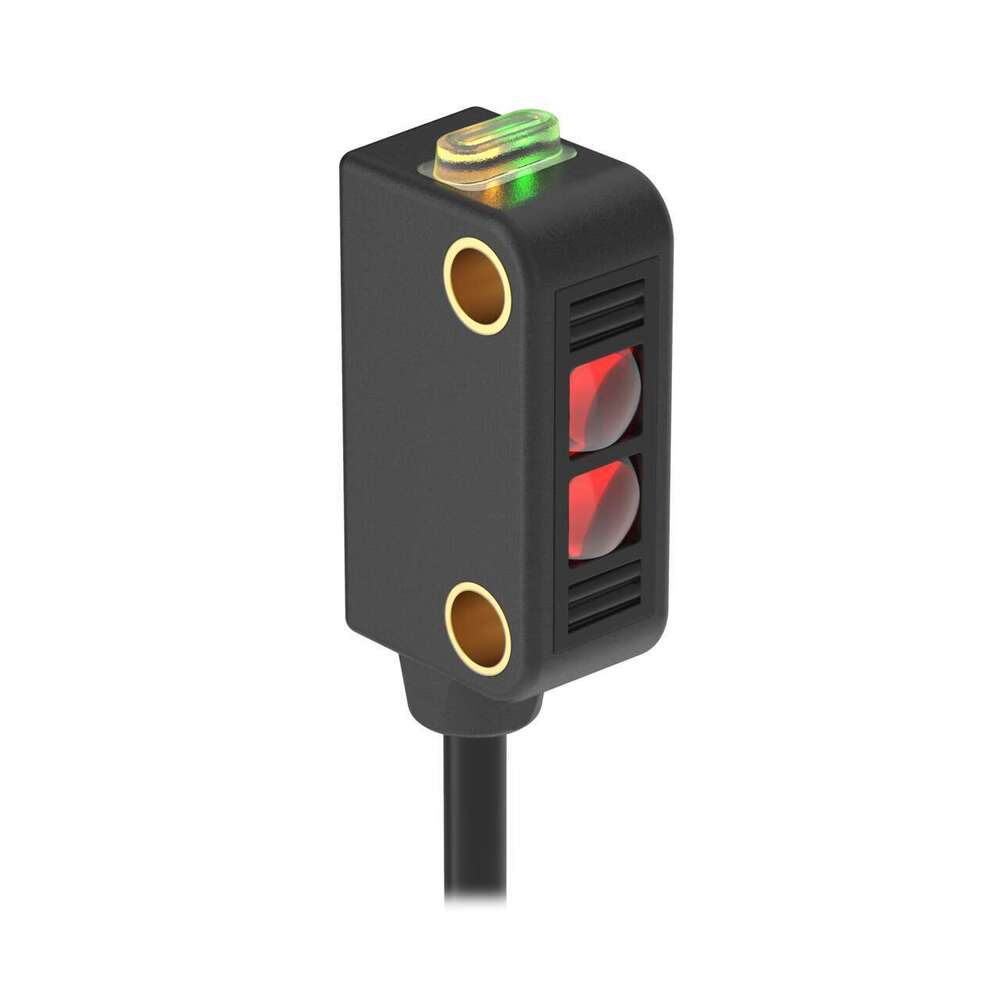

QS18VN6AF350 BGS Sensor NPN

Name: QS18VN6AF350 BGS Sensor NPN
Brand: GENESIS TECHNOMATION INDIA PRIVATE LIMITED
Price: 2000 INR
Availability: InStock

Price 2000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

QS18VN6AF350 BGS Sensor NPN Specification

Voltage
220-440 Volt (v)

Usage
Industrial

Product Type
QS18VN6AF350 BGS Sensor NPN

Material
ABS

Color
Black

Output
NPN

Theory
Other

Type
QS18 Series Background Suppression Sensor

Operating Voltage
10 to 30 VDC

Output Voltage
30 VDC max.

Storage Temperature
-40C to +70C

Operating Temperature
-20C to +55C

Degree of Protection
IP67

Supply Voltage
10-30 VDC

Light Source
Red LED, 650 nm

Dimensions
31 x 20 x 10 mm

Sensing Range
30 to 350 mm (adjustable)

Connection Type
4-pin M12 connector, Cable

Response Time
<1 ms

About QS18VN6AF350 BGS Sensor NPN

Key Specifications

Sensing Mode: Adjustable Field with Background Suppression
Cutoff Distance: 30 mm to 350 mm
Output Type: Complementary NPN (supports both Light ON and Dark ON modes)
Supply Voltage: 1030 V DC
Connection: 2 m (6.5 ft) pre-wired cable with bare leads
Housing: Compact rectangular plastic enclosure
Adjustment: Mechanical screw for precise cutoff distance tuning
Operating Temperature: -20C to +55C
Certifications: CE, RoHS, REACH compliant

Efficient Background Suppression Technology

The QS18VN6AF350 BGS Sensor uses innovative background suppression, allowing it to distinguish target objects from surrounding surfaces with minimal interference. Its adjustable detection range enables precise control for diverse industrial tasks, minimizing false detections and improving operational efficiency across multiple settings.

Robust Performance in Harsh Conditions

Engineered with a high-grade ABS enclosure and rated IP67, the QS18VN6AF350 is resilient against dust, moisture, and mechanical impact. Its wide operating temperature span makes it ideal for deployment in challenging environments, ensuring consistent performance and prolonged lifespan.

Flexible Installation and Connectivity

Featuring a compact design and a 4-pin M12 connector with cable, this sensor offers versatile installation options. Its NPN output supports seamless integration into existing control systems, while the 10-30 VDC operating voltage range provides compatibility with varied industrial power supplies.

FAQ's of QS18VN6AF350 BGS Sensor NPN:

Q: How does the QS18VN6AF350 BGS Sensor suppress background interference in industrial applications?

A: The QS18VN6AF350 uses advanced background suppression technology to differentiate target objects from surrounding surfaces, enabling accurate detection even in environments with high background reflectivity or variability.

Q: What is the process for adjusting the sensing range of this sensor?

A: The sensing range, which is adjustable from 30 to 350 mm, can be set manually using the sensor's built-in adjustment mechanism, allowing operators to fine-tune detection distance according to specific application needs.

Q: Where can the QS18VN6AF350 sensor be installed for optimal performance?

A: This sensor is suitable for installation in industrial environments such as production lines, assembly machines, or automated sorting systems, where reliable object detection is essential.

Q: When should the sensor's output voltage be considered in the integration process?

A: The output voltage, with a maximum of 30 VDC, should be verified during system design to ensure compatibility with downstream control devices, especially when integrating with PLCs or relay modules.

Q: What are the benefits of the IP67 protection rating for this sensor?

A: The IP67 rating ensures that the QS18VN6AF350 is protected against dust ingress and temporary immersion in water, making it dependable for use in harsh industrial settings without frequent maintenance.

Q: How is the sensor connected to an industrial automation system?

A: Connection is facilitated via the 4-pin M12 connector and cable, which simplifies wiring and enables secure attachment to control panels or fieldbus modules, ensuring reliable data transmission and easy installation.
