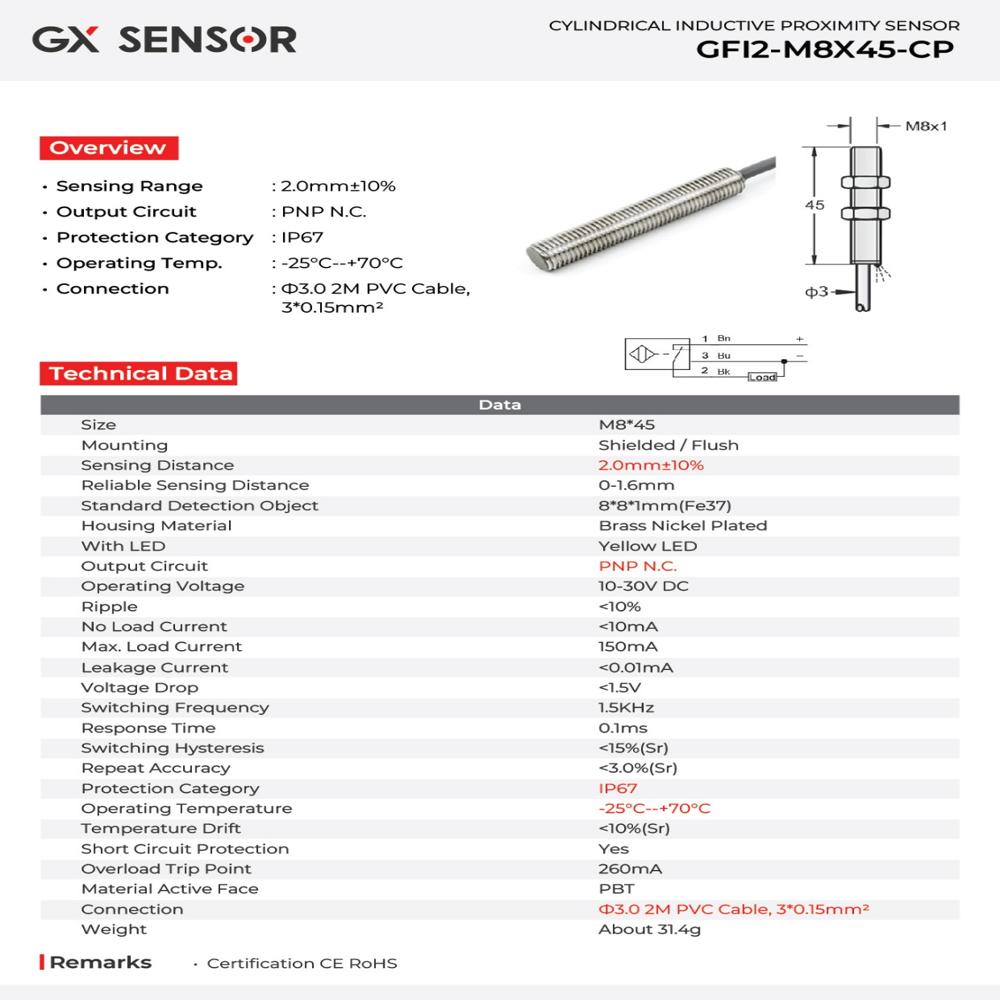

M8 GX Inductive proximity sensor

Name: M8 GX Inductive proximity sensor
Brand: GENESIS TECHNOMATION INDIA PRIVATE LIMITED
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

M8 GX Inductive proximity sensor Specification

Resistance
100mA

Output
NPN/PNP NO+NC

Theory
Other

Type
Inductive Proximity Sensor

Accuracy
0.05mm

Operating Voltage
DC 10~30V

Output Voltage
DC 30V

Compensated Temperature
-15C to +55C

Storage Temperature
-40C to +80C

Operating Temperature
-25C to +70C

Response Frequency
1kHz

Protection Degree
IP67

Housing Material
Nickel-plated brass

Connection Type
3-wire, 2m cable

Indicator
LED (Red)

Repeat Accuracy
3% of sensing distance

Weight
approx. 25g

Detection Distance
2mm

Switching Hysteresis
10% of sensing distance

Installation Type
Flush (Shielded)

Sensing Object
Ferrous metals

Size
M8 x 1

M8 GX Inductive proximity sensor Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

About M8 GX Inductive proximity sensor

M8 GX Inductive Proximity Sensor is a very compact non-contact sensor used to detect metallic objects in industrial automation systems. The term M8 refers to the 8 mm diameter threaded cylindrical body of the sensor, making it suitable for installations where space is very limited.

This sensor operates based on the principle of electromagnetic induction. Inside the sensor, an oscillator generates an electromagnetic field at the sensing face. When a metal object approaches this field, it causes a disturbance in the electromagnetic energy. The sensor detects this change and switches the output signal (ON/OFF) to indicate the presence of the metal object.

GX series inductive proximity sensors are designed for high precision, durability, and reliable operation in industrial environments such as machines, conveyors, and automated systems.

Key Features

Very small M8 cylindrical design
Non-contact detection of metal objects
Fast switching response
High reliability and long service life
LED indicator for operation status
Resistant to dust, oil, and vibration

Typical Specifications

Sensor size: M8 (8 mm diameter)
Sensing distance: 1 2 mm (depending on model)
Power supply: 10 30 V DC
Output type: NPN or PNP
Protection rating: IP67

Applications

Miniature machine automation
Position detection in small equipment
Robotics and assembly systems
Packaging machines
Metal part detection in tight spaces

Durable Construction for Industrial Reliability

Featuring a robust nickel-plated brass housing and IP67 protection, the M8 GX Inductive Proximity Sensor is built to withstand harsh industrial environments, including exposure to dust and moisture. Its flush (shielded) installation design facilitates integration in compact spaces without sacrificing performance or durability.

High-Precision Detection and Fast Response

Engineered for accurate ferrous metal detection, this sensor delivers a detection distance of 2mm with a remarkable 0.05mm accuracy. With a response frequency of 1kHz and low switching hysteresis, it supports rapid operations and consistently reliable results in high-speed automation lines.

Versatile Output and Easy Monitoring

The M8 GX offers both NPN and PNP NO+NC output configurations, making it adaptable to diverse control systems. A red LED indicator provides clear visual confirmation of object detection status, simplifying troubleshooting and ongoing operation monitoring within manufacturing processes.

FAQ's of M8 GX Inductive proximity sensor:

Q: How do I install the M8 GX Inductive Proximity Sensor correctly?

A: For proper installation, the sensor should be mounted flush (shielded) in metallic surfaces using its M8 x 1 thread. Ensure a secure fit and connect the integrated 2-meter, 3-wire cable according to your circuit requirements. Refer to the manufacturer's instructions for correct wiring to avoid malfunction.

Q: What types of objects can this sensor detect?

A: The M8 GX Inductive Proximity Sensor is specifically designed to detect ferrous metals, such as iron and steel. It may not respond reliably to non-ferrous metals like aluminum or copper.

Q: When is the red LED indicator activated on this sensor?

A: The red LED indicator lights up when a ferrous object is detected within the 2mm sensing range. This visual signal helps operators confirm sensor operation and object presence without additional testing equipment.

Q: Where can the M8 GX sensor be used?

A: Thanks to its robust IP67 protection, the sensor is suitable for industrial automation, assembly lines, and equipment where exposure to moisture or dust is common. It can be installed in a wide range of environments across manufacturing facilities in India.

Q: What process does the sensor use to detect objects?

A: Utilizing inductive sensing theory, the sensor generates an electromagnetic field. When a ferrous metal interrupts this field, the sensor detects the disturbance and changes its output state accordingly.

Q: How does using this sensor benefit my automation system?

A: The M8 GX sensor provides high accuracy (0.05mm), reliable repeatability (3%), and a rapid 1kHz response frequency, which means increased process efficiency and reduced production errors in automated systems.
